THREE MEN and a TENOR tech REQUIREMENTS

watch WHAT 3MT DOES ON STAGE

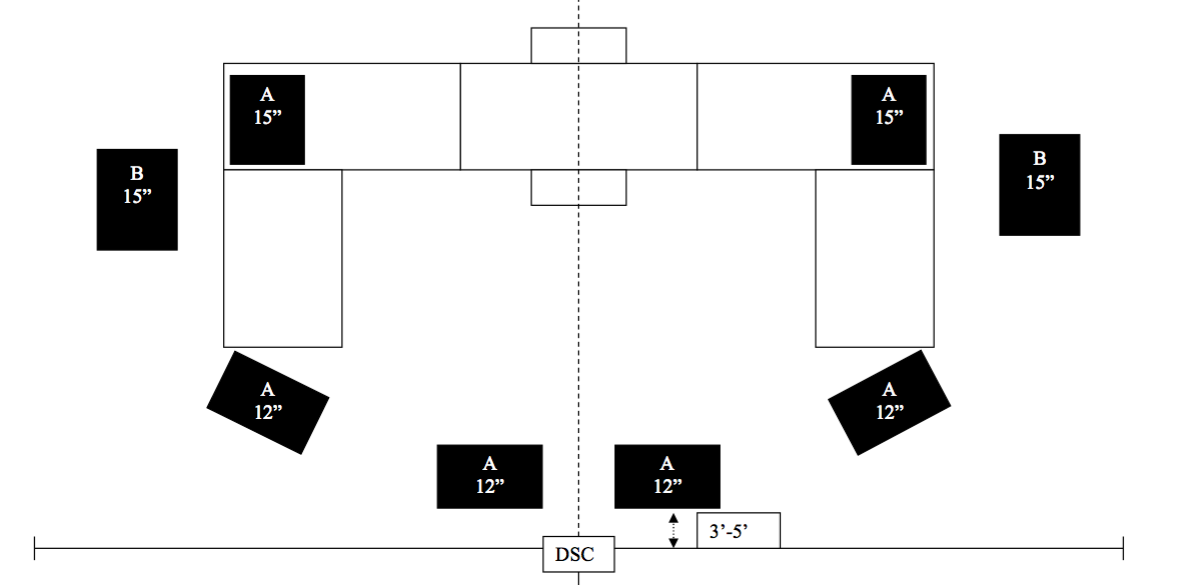

3MT Stage Monitor Diagram

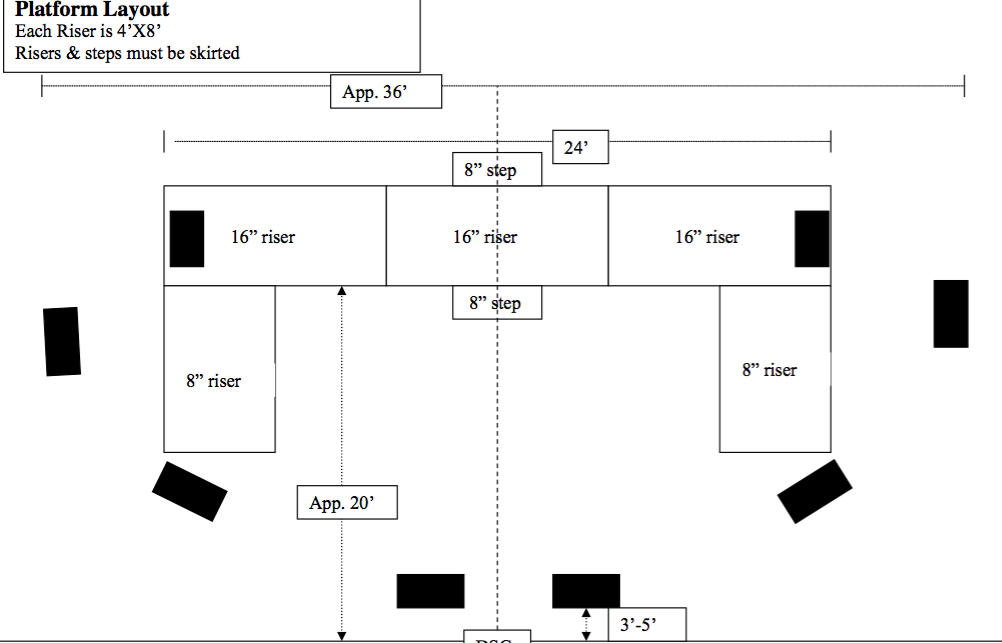

3MT PLATFORM RISER LAYOUT DIAGRAM

sound REINFORCEMENT:
MICROPHONE CHANNELS AND INPUTS:
1. Beta87 PAUL- Bass- needs full sub frequencies
2. SM58   CHUCK- Lead - CLosely matched with Mark
3. SM58   MARK- Lead - Closely matched with Chuck
4. SM58   GLENN- Tenor- CLean and blended mix
5. DRUM TRACK MACHINE: 1/4" INPUT onstage
6. FX1
7. FX2

Drum track signal sent to both the FOH mix and to monitor mix and will need to be sent “pre fader.”

MONITOR MIX:
(1) EV 8 channel mixing console (for the monitor mix) (4) 12” EV or JBL (full frequency) monitor speakers (4) 15” EV or JBL (full frequency) monitor speakers (2) Stereo EQ

NOTE: Only one monitor mix from stage w/drums and vocals
The stage monitors (microphones and drum track) are all controlled from the stage by the group. The only signal being sent from FOH to the stage monitors is a drum track which is to be sent to the monitor mixing console.

EQUIPMENT NEEDS:
- (5) 4’x8’ Stage platforms - set up in a "U" shape facing the house.
- Solid black music stand or small table (1’x1’)
- (1) 6-8’ long table on stage for props
- 2’x4’ (or larger) table for FOH mixing board provided by 3MT
- (4) Straight Mic Stands – must be same color w atlas bases
- Mic Stand clips large enough for Shure wireless mics.
- (4) Stools without backs, all be the same design and color
- (6) Wooden blocks to adjust the angle of the stage monitors

ELECTRICAL NEEDS:
- (5) Dedicated 20 amp circuits: (4) circuits both located DSL/DSR
- (1) circuit located at the FOH sound mix location.
- (4) Add. 20 amp circuits on stage if 3MT is providing stage lights
